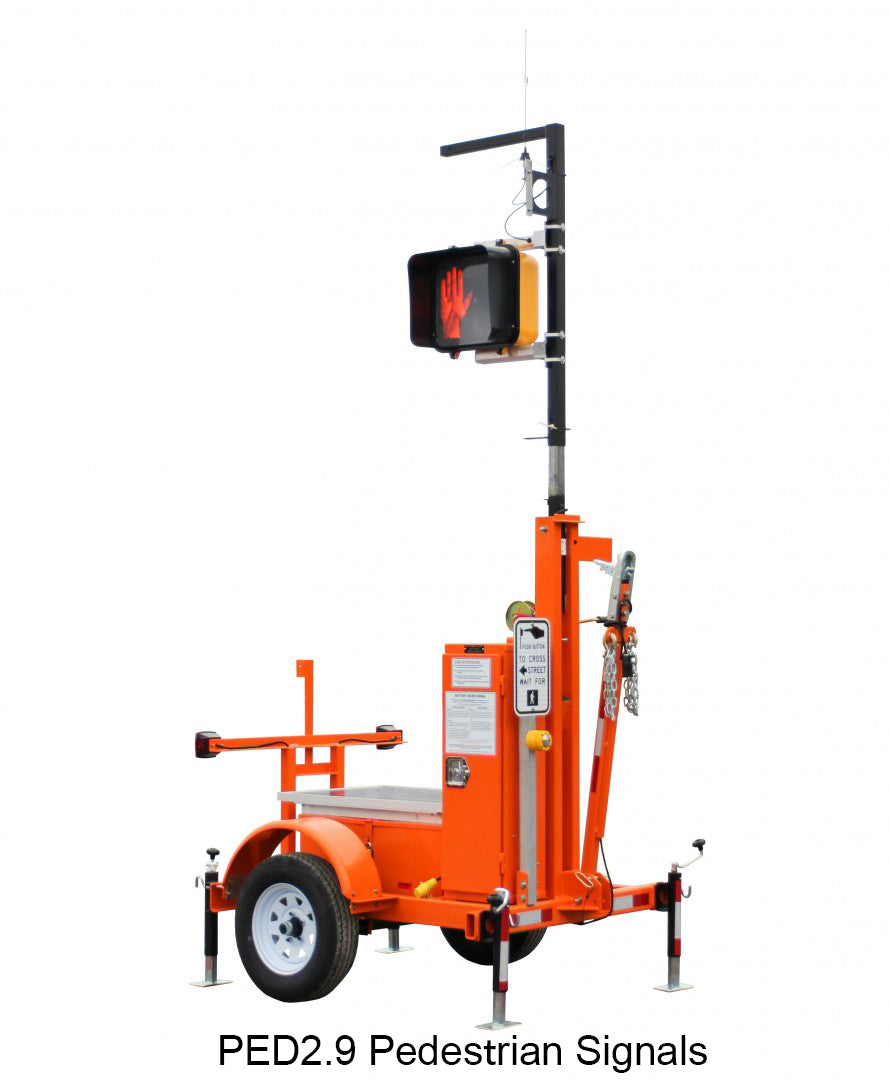

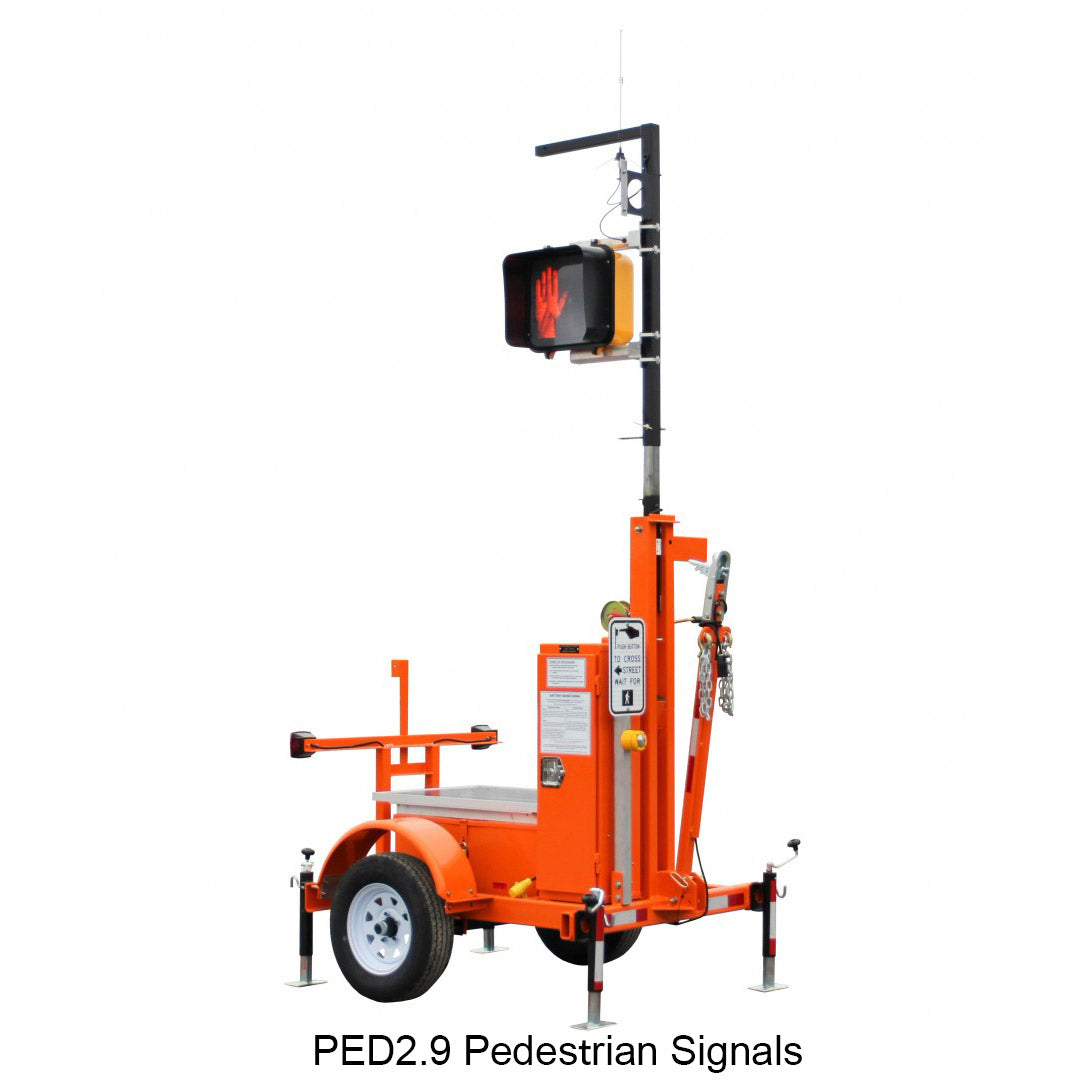

PED 2.9 Pedestrian Signal

Work zones can be hazardous to pedestrians. Our Portable Pedestrian Signal is a designed to interact with NAT’s portable traffic signals. The Portable Pedestrian Signal provides an MUTCD compliant pedestrian Display with countdown timer that indicates to pedestrians it is safe to proceed. Suitable for intersections requiring pedestrian crosswalks or as a cross walk in the middle of a busy road where it wouldn’t be safe to cross without a signalized crossing. The Portable Pedestrian Signal operates with push button activation allowing pedestrians to request a walk signal following a programed clearance interval; it will help to keep pedestrians out of harm’s way on your projects or special events.

  • MUTCD compliant LED pedestrian signal display with countdown timer
  • Piezo pedestrian push button
  • Compliant with the NEMA TS-5 Environmental Standards
  • User-friendly controller
  • Quick set up time and small trailer footprint
  • Power is supplied by a bank of batteries with a 120 volt charger
  • 21 day operation without sun
  • 100 watt solar array
  • 8 batteries – 6 volt deep cycle
