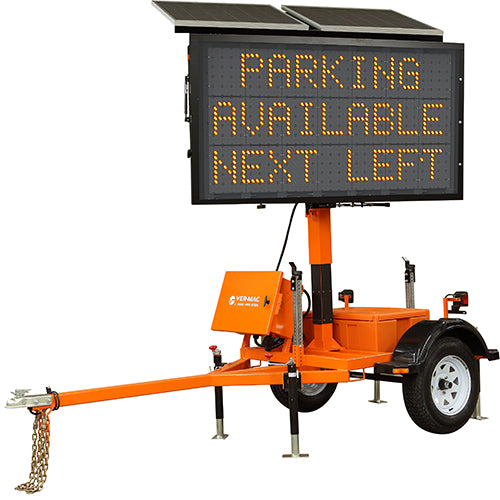

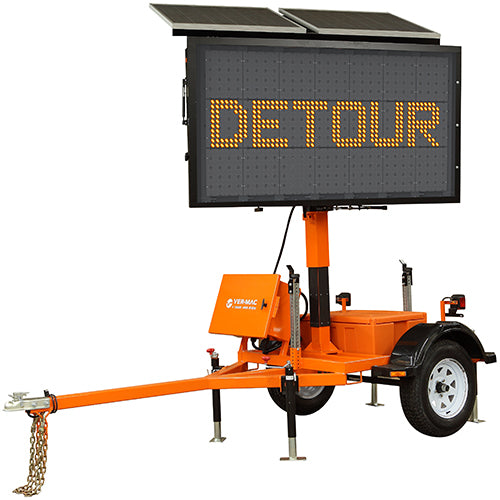

PCMS-548

PCMS-548 is a mini full-matrix trailer-mounted portable changeable message sign. It features the NTCIP-compliant V-Touch controller, Tilt-and-Rotate solar panels, JamLogic fleet management software and optional Stealth Technology. The PCMS-548 combines energy-efficient design and high-quality construction to provide the most reliable and cost-effective message sign on the market. PCMS-548 is perfect for lower speed roadways and urban areas.

ENERGY-EFFICIENT DESIGN

  • TILT-AND-ROTATE SOLAR PANELS – Panels tilt to a 45-degree angle to provide maximum solar recharging during all four seasons.
  • Designed to run 12 months in most regions without manual charging.
  • Various configurations of solar panels and batteries are available to meet your needs.

HIGH-QUALITY CONSTRUCTION

  • Powder coating superior finish – Impact, humidity, salt spray, and rust resistant
  • 4 leveling jacks – For stabilization and easy transportation
  • Manual lift mechanism – For quick deployment
  • Heavy-duty plastic fenders – For durability and easy replacement
  • Plastic battery box – To minimize battery corrosion
  • Lockable control box – For security
  • 2-in. (51 mm) coupler or 3-in. (76 mm) pintle eye – For easy towing

DISPLAY

  • Display panel: 45 x 80 in. (1146 x 2027 mm)
  • Full matrix of 30 x 56 pixels
  • 2 LED per pixel
  • 3 lines of 9 characters per line (5 x 7 default font)
  • Up to 3 lines of 13 characters per line (3 x 7 font)
  • Display sign rotates 360 degrees for perfect setting
  • Plug-and-play display modules for simplified maintenance

DIMENSIONS AND WEIGHT

  • Overall length: 131 in (3338 mm)
  • Overall width: 71 in (1791 mm)
  • Traveling height: 94 in (2393 mm)
  • Operating height: 164 in (4162 mm)
  • Axle/suspension: 909 kg (2,000 lb.)
  • Weight (approx.): 570 kg (1,255 lb.)

OPTIONS

  • Battery charger
  • Tongue wheel jack
  • Radar
  • Data logger (requires radar)
  • Hydraulic lift mechanism
  • Stealth Technology
  • 4 LED per pixel display cards
Other options are available to meet your needs.
